Outdoor Microgrid Solar Power Energy Storage System 90kwh 100kwh 110kwh 120kwh
Outdoor Microgrid Solar Power Energy Storage System 90kwh 100kwh 110kwh 120kwh
Outdoor Microgrid Solar Power Energy Storage System 90kwh 100kwh 110kwh 120kwh
Outdoor Microgrid Solar Power Energy Storage System 90kwh 100kwh 110kwh 120kwh

Outdoor Microgrid Solar Power Energy Storage System 90kwh 100kwh 110kwh 120kwh

Product Details

Place of Origin: China

Brand Name: 1STESS

Certification: LVD

Model Number: EnerArk2.0-30P

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: negotiable

Packaging Details: container

Delivery Time: 60-90 days

Payment Terms: L/C, T/T

Supply Ability: 10 containers per month

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

Outdoor Solar Power Energy Storage

,

Solar Power Energy Storage 90kwh

,

Microgrid Energy Storage System 100kwh

Application:
Commercial And Industrial
OEM/ODM:
Acceptable
Cycle Life:
>6000 Cycle
Capacity:
89-143kwh
Warranty:
5 Years
Cell Type:
LFP
Application:
Commercial And Industrial
OEM/ODM:
Acceptable
Cycle Life:
>6000 Cycle
Capacity:
89-143kwh
Warranty:
5 Years
Cell Type:
LFP
Description

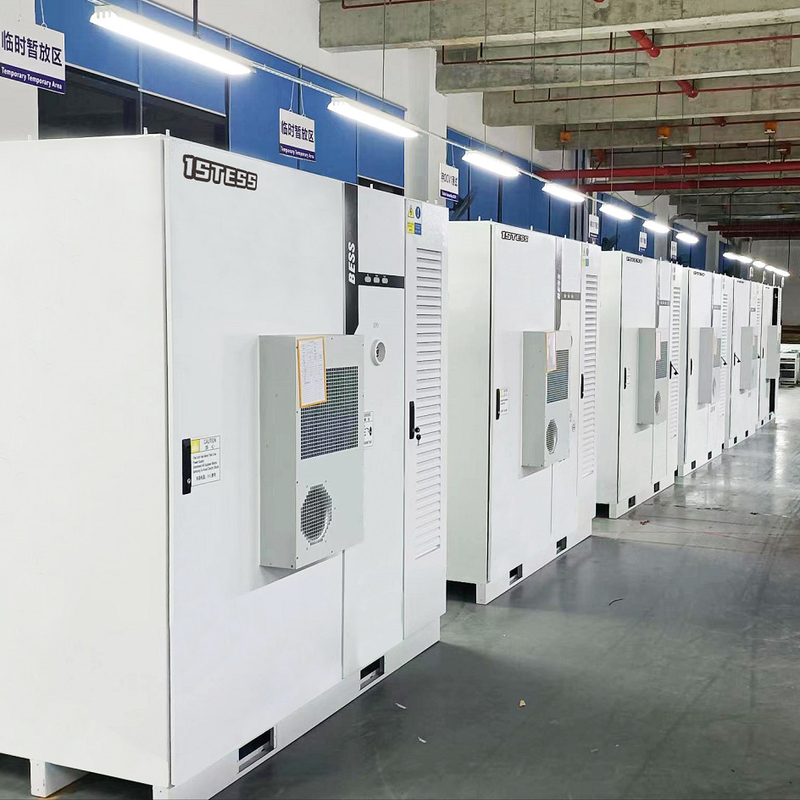

Outdoor Microgrid Solar Power Energy Storage System 90kwh 100kwh 110kwh 120kwh

Microgrid Solar Power Energy Storage System Product 90kwh 100kwh 110kwh 120kwh Outdoor Battery



Product description:



The whole system is plug-and-plav, easy to be transported, installed and maintained. it is an one-stop integration systemand consist of battery module, PCS, PV controler(MPPT) (optional), control system, fire control system, temperaturecontrol system and monitoring system. The synergy of the system components can achieve effective charging anddischarging. lt adopts AC coupled micro-grid structure, PcS, load, grid, and access to AC bus, and the correspondingcontrol strategy is developed according to the actual case to ensure the safety of power supply.
The battery cluster consists of modules connected in series, and the whole battery system is controlled by BCM tomonitor the cluster voltage and current in real time. The battery module consists of LiFePo4 battery cells. lt adoptsdistributed BMl control system with functions of collecting the battery voltage, battery temperature and batteryequalization to ensure the module works effectively and safely.
Outdoor Microgrid Solar Power Energy Storage System 90kwh 100kwh 110kwh 120kwh 0


Product parameter:


PRODUCT PARAMETERS
 Model  EnerArk2.0-30P
Battery parameters
 Cell Type  LFP-280Ah
 Module Model  IP20S
 System Configuration  1P100S~1P160S
 Battery Capacity(BOL)  89kWh~143kWh
 Battery voltage range  280V-576V
AC on-grid parameters
 Grid Type  3P4W
 Rated charge/discharge power  30KW
 Rated grid voltage  AC400V
 Grid Voltage range  -15%~+15%
 Rated grid frequency  50Hz
 Frequency range  ±5Hz
 Rated current  43A
 Power Factor  0.8(Leading)~0.8(Lagging)
 Output Harmonics(Rated power)  ≤3%
General parameters
 Dimension (W*H*D)  1500*2100*1230mm
 Max Weight  2000kg
 IP Protection Rating  IP54(Battery room)
 IP54(Electrical room)
 Seismic Intensity Rating  8 degree(IEC60980)
 Anti-corrosion grade  C3
 Operating temperature  -20℃～50℃
 Relative Humidity  0-95%(Non-condensing)
 Altitude  ＜2000m
 Cooling method  Battery room: air conditioning Electrical room: forced air cooling
 Noise  ≤75dB
 System efficiency  ≥85%
 Cycle life  10years or＞ 6000cycles
 Fire fighting System  Automatic fire extinguishing
 Fire extinguishing media  FM200
 Communication Interface   RS485,Ethernet
 Communication protocols  Modbus RTU,Modbus TCP/IP
 Warranty  5years


Product features:


1) High-performance LiFePo4 battery to ensure high safety and reliability for energy storage2) lntelligent temperature control to ensure the optimal temperature environment and lower systempower consumption.
3)Real-time data backup.
4) Automatic fire fighting system with high safety.
5) Patented design with pressure relief and flame arrest.
6) One-button start, automatic operating and it support multiple parallel connection.
7)Protection class lP55, suitable for outdoor use.
8) Four layers of safety protection design for higher safety and reliability9)Remote viewing service.
