Product Details
Place of Origin: China
Brand Name: 1stess
Certification: LVD
Model Number: EnerGeo
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: container
Delivery Time: 45-60 days
Supply Ability: 10 containers
AC Rated Power: |
30-60kw |
Module: |
51.2V 105AH |
Discharge: |
1C |
Un Code: |
UN38.3 |
Battery: |
LiFePo4 - 100Ah |
Communication Interface: |
RS485, Ethernet |
Cooling Type: |
Air Cooling |
Rated Grid Voltage: |
AC400V |
AC Rated Power: |
30-60kw |
Module: |
51.2V 105AH |
Discharge: |
1C |
Un Code: |
UN38.3 |
Battery: |
LiFePo4 - 100Ah |
Communication Interface: |
RS485, Ethernet |
Cooling Type: |
Air Cooling |
Rated Grid Voltage: |
AC400V |

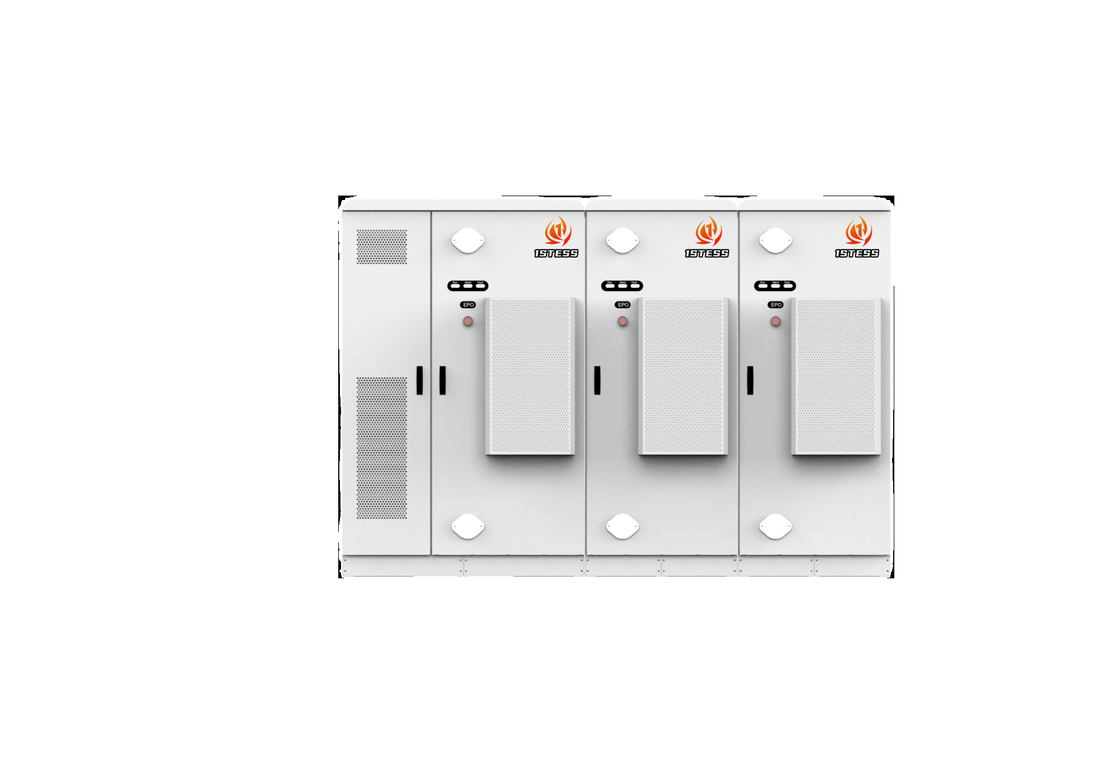

The BESS Battery Energy Storage System is equipped with a state-of-the-art fire system, which ensures the safety of the product and the surrounding environment. This feature makes the BESS Battery Energy Storage System ideal for use in a range of applications, including grid-scale energy storage, renewable energy integration, and peak shaving.
The BESS Battery Energy Storage System is capable of providing AC rated power ranging from 30-60kw, making it a powerful energy storage solution for a range of applications. The discharge rate of the BESS Battery Energy Storage System is 1C, which means that it can deliver its rated power for one hour without any issues.
Overall, the BESS Battery Energy Storage System is a reliable and efficient energy storage solution that is ideal for a range of applications. Its LiFePo4 battery, state-of-the-art fire system, and powerful AC rated power make it an excellent choice for anyone looking for a reliable and efficient energy storage solution.
| Product Name | All In One Energy Storage System - BESS Battery | |
| Model | EnerGeo-30P | EnerGeo-60P |
| General Parameters | ||
| Dimensions (W*H*D) | 1350*2100*1050mm | |
| Maximum weight | About 1500kg | |
| Degree of protection | Suitable for outdoor | |
| Cooling method type | Battery Cabinet (air conditioner) & Electrical Cabinet (forced air cooling) | |
| Operating temperature * | -20°C 〜5C°C | |
| Altitude** | <2000m | |
| Fire fighting system | FM200 automatic fire extinguishing(Novecl230/Aerosol is optional) | |
| Noise emission | S75dB | |
| Communication interface | RS485,Ethernet | |
| Communication protocol | Modbus RTU, Modbus TCP/IP | |
| PV Side Parameters(Optional) | ||
| Maximum PV input power | 30kW/60kW | 30kW/60kW/90kW/120kW |
| PV voltage range | 200V~(Busvoltage-50V) | 200V~(Busvoltage-50V) |
| Number of PV inputs | 1/1 | 1/1/2/2 |
| Maximum in put curre nt | 100A/200A | 100A/200A/300A/400A |
Application 1: On-grid+PV(optional)+Charging station
=>Supports on-grid for normal operation;
=>Supports photovoltaic+DC charging pile access;
=> BESS can intelligently coordinate the output between multiple devices such as photovoltaic, energystorage, utility and DC charging pile according to the power of the connected DC charging pile.
Application 2 : Flexible expansion
=>supports up to 3 battery cabinets in parallel;
=>In on-grid mode, multiple units can be connected in parallel without restrictions
1stess EnerGeo is a UN38.3 certified product, which means that it has undergone rigorous testing and meets the safety requirements for transportation. It is a reliable and safe product that can be used for various energy storage applications.
