AC 400V Industrial Battery Energy Storage System107.52KWH - 125.44KWH UL Certified

Product Details

Place of Origin: China

Brand Name: 1stess

Certification: LVD

Model Number: EnerArk2.0-M

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: negotiable

Packaging Details: container

Delivery Time: 45-60 days

Supply Ability: 10 containers

Get Best Price
Contact Now
Specifications
Highlight:

UL Industrial Battery Energy Storage System

,

AC 400V Industrial Battery Energy Storage System

Warranty:
5 Years
Rated Grid Voltage:
AC 400V
Certifications:
IEC,UN,UL
Capacity:
107.52KWH-125.44KWH
Operating Temperature:
-20°C To 50°C
Application:
Industrial And Commerical
Safety Features:
Overcharge Protection, Overdischarge Protection, Short Circuit Protection
Installation:
Indoor Or Outdoor
Warranty:
5 Years
Rated Grid Voltage:
AC 400V
Certifications:
IEC,UN,UL
Capacity:
107.52KWH-125.44KWH
Operating Temperature:
-20°C To 50°C
Application:
Industrial And Commerical
Safety Features:
Overcharge Protection, Overdischarge Protection, Short Circuit Protection
Installation:
Indoor Or Outdoor
Description

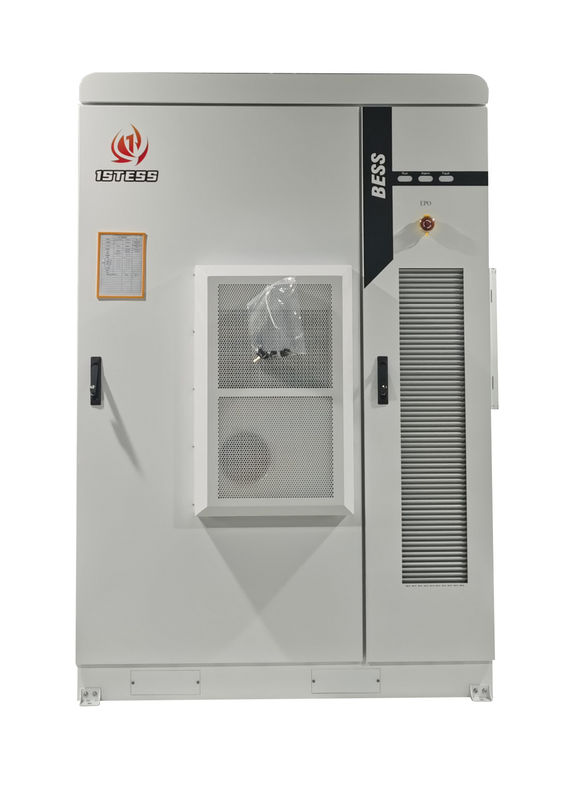

AC 400V Industrial Battery Energy Storage System107.52KWH - 125.44KWH UL Certified

UL Certified 107.52KWH - 125.44KWH AC 400V Energy Storage System with Wide Temperature Range

Product Description:

Our BESS Energy Storage System features a high-quality LiFePO4 battery, which is known for its exceptional safety and reliability, making it the perfect choice for industrial and commercial applications. With a rated grid voltage of AC 400V, our BESS Energy Storage System can easily integrate with your existing power supply, allowing you to take advantage of renewable energy sources such as solar and wind power.

Our BESS Energy Storage System also comes equipped with advanced communication protocols, including RS485 and Ethernet, allowing for seamless integration with your existing energy management systems. This ensures that you can easily monitor and manage your energy usage, helping you to optimize your energy consumption and reduce costs.

Our BESS Energy Storage System is built to last, with a 5-year warranty that ensures the highest level of quality and reliability. Our LiFePO4 battery is designed to operate in extreme temperatures, with an operating temperature range of -20°C to 50°C, making it the perfect choice for industrial and commercial applications.

With our BESS Energy Storage System, you can enjoy a more reliable, cost-effective, and sustainable source of energy for your business. Whether you’re looking to reduce your energy costs, increase your energy independence, or simply improve your environmental footprint, our Energy Storage Solution is the perfect choice for you.



Features:

  1. Product Name: Industrial Battery Energy Storage System
  2. Plug-and-Play for ready to use.
  3. Compact with modular design.
  4. Parallel operation up to 60NOs.
  5. Unbalanced loads operation.
  6. Support with solar.
  7. Intelligent remote monitoring
  8. IP55 grade,suitable for outdoor


Technical Parameters:

Model EnerArk2.0-M-NBN-P30 EnerArk2.0-M-NBN-P50
Battery Parameters
Battery cell model LiFePO4- 280Ah
Module model IP20S
Battery capacity range 107.52kWh~125.44kWh
AC On-Grid Side Parameters
Grid connection type 3P4W
Charging / discharging power 30kW 50kW
Rated grid voltage AC 400V
Grid voltage range ±15%
Frequency range 50±5Hz
Rated AC output current 43A 72A
Power factor 0.8 (Leading) ~ 0.8 (Lagging)
Harm onics ≤3% (at rated power)
AC Off-Grid Side Parameters
Grid conn ection type 3P4W+PE
Rated output power 30kW 50kW
Freque ncy 50±0.2Hz
Voltage accuracy 1%

Applications:

With its LiFePO4 battery type, the 1stess EnerArk2.0-M Industrial Battery Energy Storage System is built to last. This type of battery is known for its long cycle life, high energy density, and excellent safety features. The energy storage system is also equipped with communication protocols, including RS485 and Ethernet, to make it easy to monitor and control the system remotely.

The 1stess EnerArk2.0-M Industrial Battery Energy Storage System is an ideal solution for a range of different industrial and commercial applications. It can be used to store energy from renewable sources like solar or wind power, and can also be used to provide backup power in the event of an outage or other emergency.

This energy storage system is equipped with a range of safety features, including overcharge protection, overdischarge protection, and short circuit protection. It also has an IP55 rating, which means that it is protected against dust and water ingress.

Overall, the 1stess EnerArk2.0-M Industrial Battery Energy Storage System is an excellent choice for anyone who needs a reliable and long-lasting energy storage solution. Whether you are looking to store renewable energy or provide backup power to your facility, this energy storage system is up to the task.
