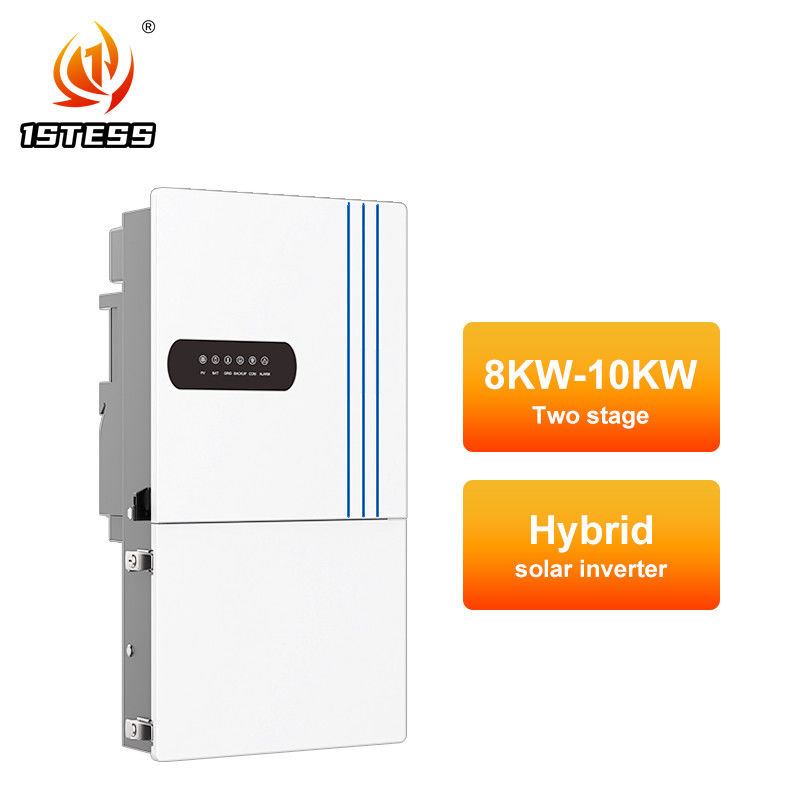

Wholesale Hybrid Inverter 8KW solar inverter hybrid 10KW hybrid solar inverter

Product Details

Place of Origin: china

Brand Name: 1STESS

Certification: UN38.3, IEC, UL

Model Number: SRP-8KRS-H1

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Packaging Details: carton box

Delivery Time: 15 days

Get Best Price
Contact Now
Specifications
Highlight:

800 Cycle Solid State Lithium Ion Battery

,

Solid State Lithium Ion Battery 3.7V

Nominal Battery Voltage:
48V
Battery Type:
Li-ion/Lead-acid
Max. Charge/Discharge Power (W):
10000/8000
No. Of MPPT:
3
No. Of Strings Per MPPT:
2
Nominal Output Voltage (V):
220/230/240
Nominal Output Frequency(Hz):
50/60
Dimension (W*H*D Mm):
420*800*240mm
Weight (kg):
37kg
Communication:
RS485/CAN (for BMS),RS485,USB,DRM/RS485 (for Meter), Optional: WiFi/GPRS/LAN
Nominal Battery Voltage:
48V
Battery Type:
Li-ion/Lead-acid
Max. Charge/Discharge Power (W):
10000/8000
No. Of MPPT:
3
No. Of Strings Per MPPT:
2
Nominal Output Voltage (V):
220/230/240
Nominal Output Frequency(Hz):
50/60
Dimension (W*H*D Mm):
420*800*240mm
Weight (kg):
37kg
Communication:
RS485/CAN (for BMS),RS485,USB,DRM/RS485 (for Meter), Optional: WiFi/GPRS/LAN
Description
Wholesale Hybrid Inverter 8KW solar inverter hybrid 10KW hybrid solar inverter

Wholesale on/off grid hybrid inverter 8KW hybrid inverter 48V hybrid inverter

Product Description:

8 kW Inverter Advantages



8 kW inverter offers several significant advantages, making it an ideal choice for both residential and commercial solar energy systems. Here are the key benefits:



   1. High Power Output

  • Sufficient Capacity: With an 8 kW power rating, this inverter can handle the energy needs of larger households or small to medium-sized businesses, effectively supporting multiple appliances and devices.



   2. Versatility

  • Hybrid Functionality: Combines solar energy generation with battery storage and grid connection, providing flexibility in energy management and usage.
  • Multiple Applications: Suitable for various applications, including residential, commercial, and off-grid systems.



   3. Energy Independence

  • Reduced Reliance on the Grid: By utilizing solar energy, users can significantly reduce their dependence on grid electricity, enhancing energy security and independence.
  • Backup Power Supply: Provides a reliable backup during grid outages, ensuring essential appliances continue to operate.



   4. Cost Savings

  • Lower Energy Bills: By generating and utilizing solar energy, users can lower their electricity costs, particularly in regions with high utility rates.
  • Net Metering: Allows users to earn credits for excess energy fed back into the grid, further offsetting energy costs.



   5. Smart Monitoring and Control

  • Real-time Data Access: Equipped with monitoring capabilities, users can track energy production, consumption, and battery status through apps or web interfaces.
  • Optimized Energy Usage: Users can manage energy consumption more effectively, prioritizing usage based on availability and cost.



   6. Scalability

  • Expandable Systems: Supports easy integration with additional solar panels or batteries as energy needs grow, allowing for future expansion without major system overhauls.



   7. Advanced Safety Features

  • Protection Mechanisms: Includes overload, short-circuit, and thermal protection, ensuring safe operation and longevity of the system.
  • Compliance with Standards: Meets safety and performance standards, providing peace of mind for users.



   8. Environmental Benefits

  • Reduced Carbon Footprint: By utilizing renewable energy, users can significantly lower their greenhouse gas emissions, contributing to a more sustainable environment.



   Conclusion

The 8 kW inverter is a powerful and versatile solution for optimizing solar energy utilization. Its combination of high capacity, hybrid functionality, cost savings, and advanced features makes it an excellent choice for users looking to enhance their energy independence and sustainability.



Features:

  • Compatible with most common low-voltagebatteries (lead-acid & lithium)
  • Parallel capacity is up to 9 units
  • Remote upgrade and configuration; safety-relatedfunctions integrated; easy for cooperating with BMS
  • European version supports external remoteshutdown device
  • UL version is integrated with Rapid ShutdownDevice, and it can output 100% load power underback-up mode


Technical Parameters:

Hybrid Inverter Date
SRP-3.6KRS-H1
SRP-4.6KRS-H1
SRP-5KRS-H1
SRP-6KRS-H1
SRP-8KRS-H1
SRP-10KRS-H1
Battery Input Data
Battery Type
Li-ion / Lead-acid
Li-ion / Lead-acid
Li-ion / Lead-acid
Li-ion / Lead-acid
Li-ion / Lead-acid
Li-ion / Lead-acid
Nominal Battery Voltage (V)
48
48
48
48
48
48
Battery Voltage Range (V)
40~65
40~65
40~65
40~65
40~65
40~65
Max. Charge/Discharge Current (A)
60/60
120/120
120/120
120/120
210/180
210/210
Max. Charge/Discharge Power (W)
3000/3000
4600/4600
5000/5000
6000/6000
10000/8000
10000/10000
PV String Input Data
Max. Array Input Power (W)
6300
9000
9000
9000
12000
15000
Max. DC Input Voltage (V)
550
550
550
550
600
600
Nominal DC Input Voltage (V)
360
360
360
360
360
360
Start-up Voltage (V)
90
90
90
90
90
90
MPPT Voltage Range (V)
70~540
70~540
70~540
70~540
70~540
70~540
Max Input Current per MPPT (A)
15/15
15/15
15/15
15/15
30/22/22
30/22/22
Max Short-circuit Current per MPPT (A)
20/20
20/20
20/20
20/20
40/30/30
40/30/30
No. of MPPT
2
2
2
2
3
3
No. of Strings per MPPT
1
1
1
1
2
2
AC Input Data
Nominal Input Apparent Power (VA)
3600
4600
5000
6000
8000
10000
Max. Input Apparent Power (VA)
6300
9000
9000
9000
12000
15000
Max. Input Current (A)
29
41
41
41
40
50
AC Output Data (on-grid)
Nominal Ouput Active Power (W)
3600
4600
5000
6000
8000
10000
Nominal Output Apparent Power (VA)
3600
4600
5000
6000
8000
10000
Max. Output Apparent Power (VA)
3960
5060
5500
6600
8800
11000
Nominal Output Voltage (V)
220/230/240
220/230/240
220/230/240
220/230/240
220/230/240
220/230/240
Output Voltage Range (V)
150-300(Adjustable)
-
Nominal Output Frequency (Hz)
50/60
Output Frequency Range (Hz)
45-65(Ajustable)
Max. Output Current (A)
16
22
25
27.2
40
50
Power Factor
~1 (Adjustable from 0.8 leading to 0.8 lagging)
THDi
<3%
<3%
<3%
<3%
<3%
<3%
Back-up Output Data
Nominal Output Apparent Power (VA)
3600
4600
5000
6000
8000
10000
Max. Output Apparent Power (VA)
3960
5060
5500
6600
8800
11000
Nominal Output Voltage (V)
230
230
230
230
230
230
Nominal Output Frequency (Hz)
50/60
50/60
50/60
50/60
50/60
50/60
Max. Output Current (A)
18
23
25
30
34.8
43.5
Transfer Time (ms)
10(typ) / 20(max)
10(typ) / 20(max)
10(typ) / 20(max)
10(typ) / 20(max)
10(typ) / 20(max)
10(typ) / 20(max)
THDv @ Linear load
<3% @100% R Load
<3% @ 100% R Load
Efficiency
Max. Efficiency
97.30%
97.30%
97.30%
97.30%
98%
98%
Battery Discharge to AC Efficiency
94.30%
94.30%
94.30%
94.30%
95%
95%
Protection
PV Reversed Polarity Protection
Yes
Yes
Residual Current Monitor
Yes
Yes
PV Over Voltage Protection
Yes
Yes
PV Over Current Protection
Yes
Yes
Anti-islanding Protection
Yes
Yes
DC Surge Protection
Type III
Type II
AC Surge Protection
Type III
Type II
Insulation Resistor Detector
Yes
Yes
Output Over Current Protection
Yes
Yes
Output Short Circuit Protection
Yes
Yes
Output Over Voltage Protection
Yes
Yes
Generator
-
Yes
AFCI
-
Optional
Remote Shutdown
-
Optional
Rapid Shutdown
-
-
General
Operating Temperature Range (°C)
-25℃~60℃
-25℃~60℃ (>45℃ derating)
Relative Humidity
0~100%
0~100%
Max. Operating Altitude (m)
4000
4000
Cooling Method
Natural Cooling
Fan Cooling
User Interface
APP+LED
LED+APP
Communication
RS485/CAN (for BMS), RS485, USB, DRM/RS485 (for Meter), Optional: WiFi/GPRS/LAN
RS485/CAN (for BMS), RS485, USB, DRM/RS485 (for Meter), Optional: WiFi/GPRS/LAN
Weight (kg)
20
25
25
25
37
37
Dimension (W × H × D mm)
515*485*175
420*800*240
Topology
Transformerless
Transformerless
Ingress Protection Rating
IP65
IP65
Mounting Method
Wall Bracket
Wall Bracket
 Wholesale Hybrid Inverter 8KW solar inverter hybrid 10KW hybrid solar inverter 0Wholesale Hybrid Inverter 8KW solar inverter hybrid 10KW hybrid solar inverter 1Wholesale Hybrid Inverter 8KW solar inverter hybrid 10KW hybrid solar inverter 2Wholesale Hybrid Inverter 8KW solar inverter hybrid 10KW hybrid solar inverter 3Wholesale Hybrid Inverter 8KW solar inverter hybrid 10KW hybrid solar inverter 4Wholesale Hybrid Inverter 8KW solar inverter hybrid 10KW hybrid solar inverter 5
