10KW Hybrid Solar Inverter 48V 8KW Off Grid Inverter DRM/RS485 Communication Interface

Name: 10KW Hybrid Solar Inverter 48V 8KW Off Grid Inverter DRM/RS485 Communication Interface
Brand: Shenzhen First Tech Co., Ltd.
SKU: SRP-8KRS-H1
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: 1stess

Certification: CE, IEC

Model Number: SRP-8KRS-H1

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: To be negotiated

Packaging Details: carton box

Delivery Time: 30 days

Payment Terms: L/C, T/T

Supply Ability: 2000 pieces per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      48V Hybrid Solar Inverter, RS485 Hybrid Solar Inverter, 10KW Hybrid Solar Inverter


Charging Mode:	MPPT	Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter	Frequency:	50Hz/60Hz
Output Voltage:	48VDC	Communication Interface:	RS485/CAN (for BMS),RS485,USB,DRM/RS485 (for Meter), Optional: WiFi/GPRS/LAN

Charging Mode:	MPPT
Operating Temperature:	-10°C To 50°C
Inverter Type:	Hybrid Solar Inverter
Frequency:	50Hz/60Hz
Output Voltage:	48VDC
Communication Interface:	RS485/CAN (for BMS),RS485,USB,DRM/RS485 (for Meter), Optional: WiFi/GPRS/LAN

Description

10KW Hybrid Solar Inverter 48V 8KW Off Grid Inverter DRM/RS485 Communication Interface

Product Description:

1.Compatible with most commonlow-voltage batteries (lead-acid & lithium)

2.Easy for cooperating with BMS; support remote upgradefor SRP battery BS only

3.Parallel capacity is up to 9 units

4.Support external remote shutdown device

5.Remote upgrade and configuration;safetyrelated functions integrated

Technical Parameters:

Hybrid Inverter Date	SRP-3.6KRS-H1	SRP-4.6KRS-H1	SRP-5KRS-H1	SRP-6KRS-H1	SRP-8KRS-H1	SRP-10KRS-H1
Battery Input Data
Battery Type	Li-ion / Lead-acid	Li-ion / Lead-acid	Li-ion / Lead-acid	Li-ion / Lead-acid	Li-ion / Lead-acid	Li-ion / Lead-acid
Nominal Battery Voltage (V)	48	48	48	48	48	48
Battery Voltage Range (V)	40~65	40~65	40~65	40~65	40~65	40~65
Max. Charge/Discharge Current (A)	60/60	120/120	120/120	120/120	210/180	210/210
Max. Charge/Discharge Power (W)	3000/3000	4600/4600	5000/5000	6000/6000	10000/8000	10000/10000
PV String Input Data
Max. Array Input Power (W)	6300	9000	9000	9000	12000	15000
Max. DC Input Voltage (V)	550	550	550	550	600	600
Nominal DC Input Voltage (V)	360	360	360	360	360	360
Start-up Voltage (V)	90	90	90	90	90	90
MPPT Voltage Range (V)	70~540	70~540	70~540	70~540	70~540	70~540
Max Input Current per MPPT (A)	15/15	15/15	15/15	15/15	30/22/22	30/22/22
Max Short-circuit Current per MPPT (A)	20/20	20/20	20/20	20/20	40/30/30	40/30/30
No. of MPPT	2	2	2	2	3	3
No. of Strings per MPPT	1	1	1	1	2	2
AC Input Data
Nominal Input Apparent Power (VA)	3600	4600	5000	6000	8000	10000
Max. Input Apparent Power (VA)	6300	9000	9000	9000	12000	15000
Max. Input Current (A)	29	41	41	41	40	50
AC Output Data (on-grid)
Nominal Ouput Active Power (W)	3600	4600	5000	6000	8000	10000
Nominal Output Apparent Power (VA)	3600	4600	5000	6000	8000	10000
Max. Output Apparent Power (VA)	3960	5060	5500	6600	8800	11000
Nominal Output Voltage (V)	220/230/240	220/230/240	220/230/240	220/230/240	220/230/240	220/230/240
Output Voltage Range (V)	150-300(Adjustable)				-
Nominal Output Frequency (Hz)	50/60
Output Frequency Range (Hz)	45-65(Ajustable)
Max. Output Current (A)	16	22	25	27.2	40	50
Power Factor	~1 (Adjustable from 0.8 leading to 0.8 lagging)
THDi	<3%	<3%	<3%	<3%	<3%	<3%
Back-up Output Data
Nominal Output Apparent Power (VA)	3600	4600	5000	6000	8000	10000
Max. Output Apparent Power (VA)	3960	5060	5500	6600	8800	11000
Nominal Output Voltage (V)	230	230	230	230	230	230
Nominal Output Frequency (Hz)	50/60	50/60	50/60	50/60	50/60	50/60
Max. Output Current (A)	18	23	25	30	34.8	43.5
Transfer Time (ms)	10(typ) / 20(max)	10(typ) / 20(max)	10(typ) / 20(max)	10(typ) / 20(max)	10(typ) / 20(max)	10(typ) / 20(max)
THDv @ Linear load	<3% @100% R Load				<3% @ 100% R Load
Efficiency
Max. Efficiency	97.30%	97.30%	97.30%	97.30%	98%	98%
Battery Discharge to AC Efficiency	94.30%	94.30%	94.30%	94.30%	95%	95%
Protection
PV Reversed Polarity Protection	Yes				Yes
Residual Current Monitor	Yes				Yes
PV Over Voltage Protection	Yes				Yes
PV Over Current Protection	Yes				Yes
Anti-islanding Protection	Yes				Yes
DC Surge Protection	Type III				Type II
AC Surge Protection	Type III				Type II
Insulation Resistor Detector	Yes				Yes
Output Over Current Protection	Yes				Yes
Output Short Circuit Protection	Yes				Yes
Output Over Voltage Protection	Yes				Yes
Generator	-				Yes
AFCI	-				Optional
Remote Shutdown	-				Optional
Rapid Shutdown	-				-
General
Operating Temperature Range (°C)	-25℃~60℃				-25℃~60℃ (>45℃ derating)
Relative Humidity	0~100%				0~100%
Max. Operating Altitude (m)	4000				4000
Cooling Method	Natural Cooling				Fan Cooling
User Interface	APP+LED				LED+APP
Communication	RS485/CAN (for BMS), RS485, USB, DRM/RS485 (for Meter), Optional: WiFi/GPRS/LAN				RS485/CAN (for BMS), RS485, USB, DRM/RS485 (for Meter), Optional: WiFi/GPRS/LAN
Weight (kg)	20	25	25	25	37	37
Dimension (W × H × D mm)	515485175				420800240
Topology	Transformerless				Transformerless
Ingress Protection Rating	IP65				IP65
Mounting Method	Wall Bracket				Wall Bracket

10KW Hybrid Solar Inverter 48V 8KW Off Grid Inverter DRM/RS485 Communication Interface 0

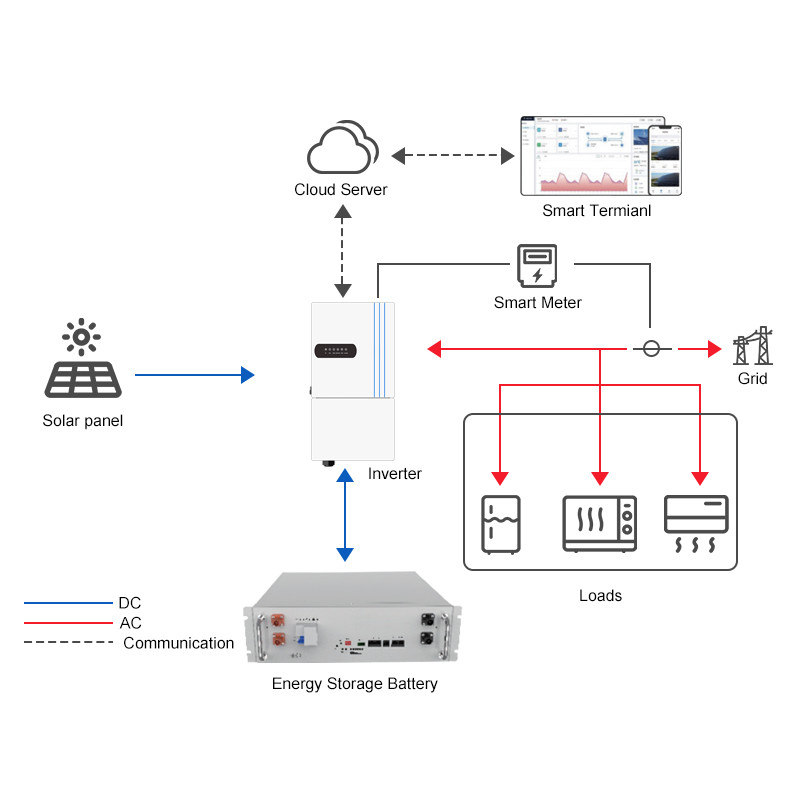

Applications:

Multi-Source Integration:
- Combines energy from solar panels, battery storage, and the grid, allowing for flexible energy use and improved efficiency.
Energy Management:
- Smart energy management capabilities enable users to prioritize energy sources based on real-time conditions and individual preferences, maximizing savings and efficiency.
Backup Power:
- Provides reliable backup power during grid outages, ensuring essential loads remain operational.
