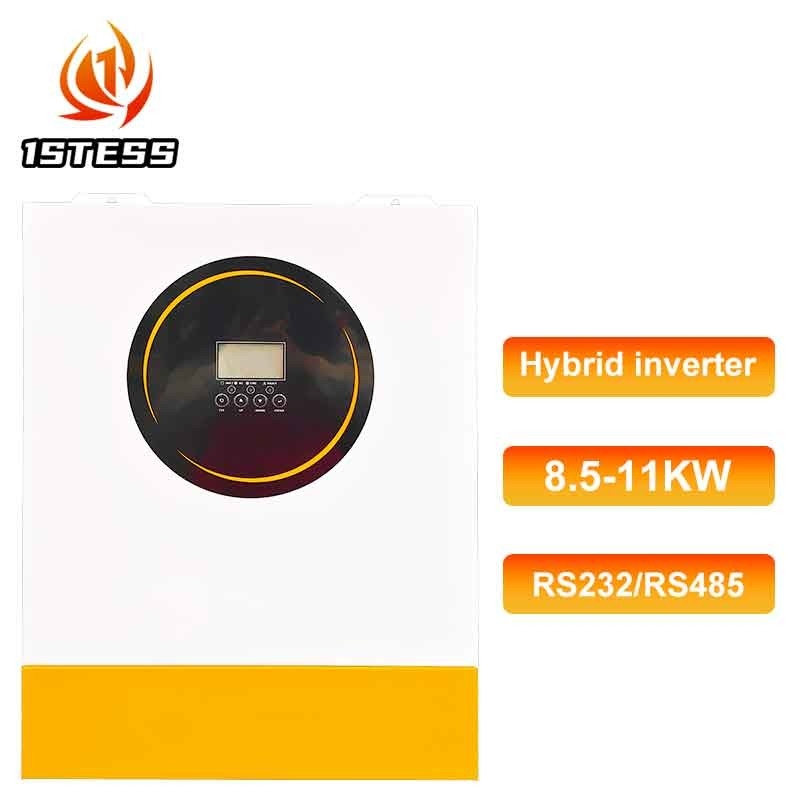

Product Details
Place of Origin: China
Brand Name: 1stess
Certification: CE, IEC
Model Number: EM-T (PV60-500VDC) 11000-48L
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: To be negotiated
Packaging Details: carton box
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 2000 pieces per month
Charging Mode: |
MPPT |
Operating Temperature: |
-10°C To 50°C |
Inverter Type: |
Off Grid Inverter |
Frequency: |
50Hz/60Hz |
Output Voltage: |
220VAC/230/240VAC |
Communication Interface: |
RS232/RS485/DRY CONTACT |
Input Voltage: |
230VAC |
Size: |
540*415*122mm |
Waveform: |
Pure Sine Wave |
Output Current: |
160A |
Weight: |
15kg |
Charging Mode: |
MPPT |
Operating Temperature: |
-10°C To 50°C |
Inverter Type: |
Off Grid Inverter |
Frequency: |
50Hz/60Hz |
Output Voltage: |
220VAC/230/240VAC |
Communication Interface: |
RS232/RS485/DRY CONTACT |
Input Voltage: |
230VAC |
Size: |
540*415*122mm |
Waveform: |
Pure Sine Wave |
Output Current: |
160A |
Weight: |
15kg |
1.Built-in 2 MPPT
2.Lithium battery activation function by PV or Utility
3.Compatible work with LiFePO4 battery via RS485
4.Pure Sine Wave
5.Powerfactor1.0
6.PVInput500Vdc Max
7.Built-in MPPT140A/160A
8.Capable to work without battery
9.Detachable dust coverforharsh environment
10.Wifi remote monitoring optiona
11.Support multiple output priority:UTL,SOL,SBU,SUB
12.EQ function to optimize battery performance and extend lifecycle
| MODEL | EM8500-48L | EM11000-48L |
| INPUT | ||
| Nominal Voltage | 230VAC | |
| Acceptable Voltage Range | 170-280VAC:90-280VAC | |
| Frequency | 50/60 Hz (Auto sensing) | |
| OUTPUT | ||
| Nominal Voltage | 220/230/240VAC | |
| Surge Power | 17000VA | 22000VA |
| Waveform | Pure Sine wave | |
| Overload Protection | 5s@>=140% load; 10s@100%~140% load | |
| Admissible Power Factor | 0.6~1 (inductive or capacitive) | |
grid-tied inverter, also known as a grid-connected inverter, is a critical component in solar power systems that connects photovoltaic (PV) panels directly to the utility grid. It converts the direct current (DC) generated by solar panels into alternating current (AC) that can be used by household appliances or fed back into the grid.
The Hybrid Solar Inverter is suitable for a wide range of applications. It can be used in homes, offices, and other buildings that require a reliable power supply. The Off Grid Hybrid Solar Inverter is also suitable for use in remote areas where there is no access to the power grid. It can be used to power lighting, appliances, and other electrical devices.
