Product Details
Place of Origin: China
Brand Name: COENG
Certification: CE, IEC
Model Number: IOMS
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: USD 52 per piece
Packaging Details: carton box
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 40000 pieces per month
Product Name: |
Solar Power Optimizer |
Application: |
Solar PV System |
Feature: |
Cost-effective Installation |
Protection Level: |
IP68 Rated |
Type: |
PV Accessories |
Service: |
OEM Customized Services |
Product Name: |
Solar Power Optimizer |
Application: |
Solar PV System |
Feature: |
Cost-effective Installation |
Protection Level: |
IP68 Rated |
Type: |
PV Accessories |
Service: |
OEM Customized Services |

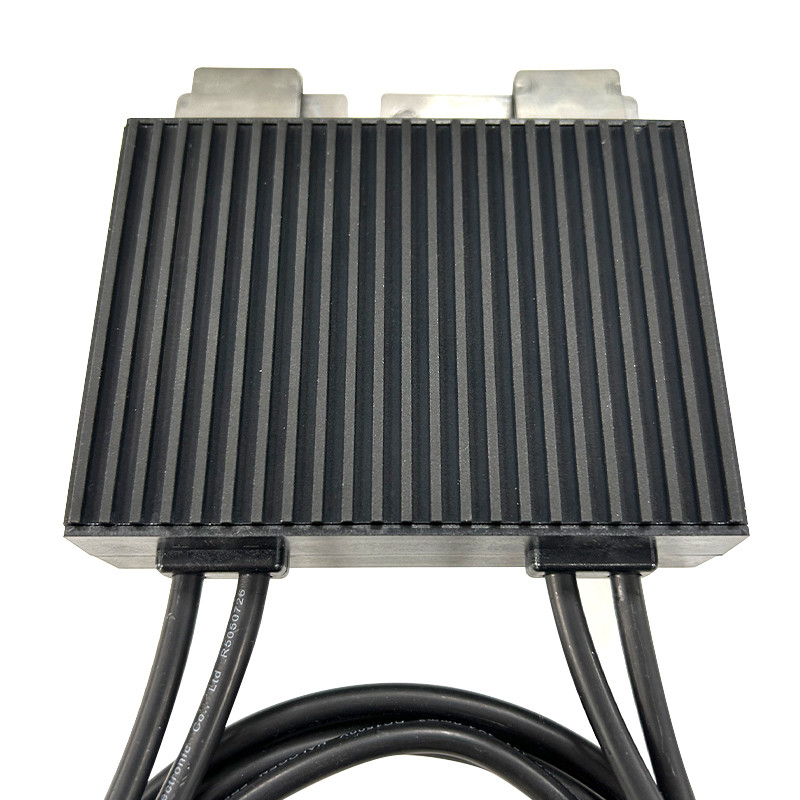

COENGI 800W Smart Solar Optimizer PV Optimizer for Photovoltaic Systems
| Model | OMS800 | |
| Product name | COENGI 800W Smart Solar Optimizer PV Optimizer | |
| Max DC input power | 800W | |
| Max DC input voltage | 70V | |
| Max continuous input current | 21A | |
| Max input short-circuits current | 23A | |
| Night self-consumption | 0W | |
| Output voltage | 0-60V | |
| Max output power | 780W | |
| Dimensions(W*D*H) | 116.3*22.8*120mm | |
| Weight | 650g | |
| Terminals | MC4(Compatible) | |
| Relative humidity | 0-100%RH | |
Solar PV optimizer is a device or component used in photovoltaic (PV) systems to improve the overall performance and efficiency of solar panels. It operates at the individual module or panel level, optimizing power output and mitigating the impact of shading, soiling, or other factors that may reduce energy production.
The main function of a solar PV optimizer is to implement maximum power point tracking (MPPT) for each module. MPPT technology continuously monitors and adjusts the operating point of each panel to extract the maximum power available under varying environmental conditions. This ensures that the panels operate at their highest efficiency levels and generate the maximum amount of electricity.
