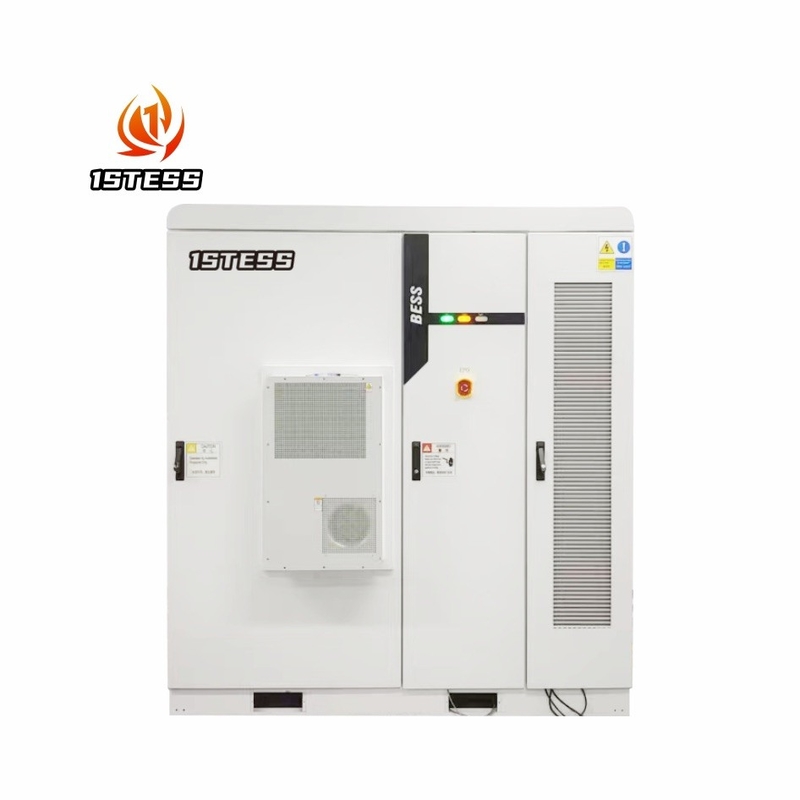

Industrial Commercial Battery Storage Systems Community Emergency Power Supply Container

Name: Industrial Commercial Battery Storage Systems Community Emergency Power Supply Container
Brand: Shenzhen First Tech Co., Ltd.
SKU: EnerArk
Price: 70000 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: 1STESS

Certification: LVD

Model Number: EnerArk

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: USD 70000 per container

Packaging Details: container

Delivery Time: 45-60 days

Payment Terms: L/C, T/T

Supply Ability: 10 containers per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Industrial Commercial Battery Storage Systems, Community Commercial Battery Storage Systems, Emergency Power Supply Container


Application:	Commercial And Industrial	Warranty:	5-10 Years
Cell Type:	LiFePo4	Communication Interface:	Ethernet/Wi-Fi/RS485
Capacity:	Customised	Function:	Backup Power, Peak Load Shifting
Mounting Type:	Ground Mounting	Communication Port:	RS485/Ethernet

Application:	Commercial And Industrial
Warranty:	5-10 Years
Cell Type:	LiFePo4
Communication Interface:	Ethernet/Wi-Fi/RS485
Capacity:	Customised
Function:	Backup Power, Peak Load Shifting
Mounting Type:	Ground Mounting
Communication Port:	RS485/Ethernet

Description

Industrial Commercial Battery Storage Systems Community Emergency Power Supply Container

Product Parameter:

Model	EnerArk2.0-30P	EnerArk2.0-60P	EnerArk2.0-100P
Battery Capacity(BOL)	89kWh~143kWh	215kWh	215kWh
Battery voltage range	280V-576V	672V-864V	672V-864V
Rated charge/dischargepower	30KW	60kW	100kW
Rated current	43A	86A	172A
Maximum input modulepower	30KW	60KW/120KW	60KW/120KW
Maximum input current	100A	100A/200A	100A/200A
Altitude	<2000M
Noise	<75dB
Rated grid voltage	AC400V
Dimension (WHD)	150021001230mm	190021001230mm	190021001230mm
Max Weight	2000kg	2500kg	2500kg

Product Description:

Industrial Commercial Battery Storage Systems Community Emergency Power Supply Container 0

The whole system is plug-and-play, easy to be transported, installed and maintained. lt is an one-stop integration systenand consist of battery module, PcS, pV controler(MPpT) (optional), control svstem, fire control svstem, temperaturecontrol system and monitoring system. The synergy of the system components can achieve effective charging anddischarging. lt adopts AC coupled micro-grid structure, PcS, load, grid, and access to AC bus, and the correspondingcontrol strategy is developed according to the actual case to ensure the safety of power supply.

The battery cluster consists of modules connected in series, and the whole battery system is controlled by BCM tomonitor the cluster voltage and current in real time. The battery module consists of LiFePo4 battery cells. lt adoptsdistributed BlMl control system with functions of collecting the battery voltage, battery temperature and batteryequalization to ensure the module works effectively and safely.

Product Feathers:

High-performance LiFePo4 battery to ensure high safety and reliability for energy storage.
Inteligent temperature control to ensure the optimal temperature environment and lower systempower consumption.
Real-time data backup.
Automatic fire fighting system with high safety.
Patented design with pressure relief and flame arrest.
One-button start, automatic operating and it support multiple parallel connection.
Protection class lP55, suitable for outdoor use.
Four layers of safety protection design for higher safety and reliability.
Remote viewing service.

FAQ:

1.Who are we?

We are based in Shenzhen Guangdong, China, start from 2017, a manufacturer and solution provider of energy storagesystem products, sell to Africa, Europe, Southeast Asia, Mid East, Eastern Asia.

2.What products I can buy from you?

Inverter, storage lithium battery, portable storage system, residential energy storage system, container energy storage

system, etc.

3.Can you supply OEM & ODM service?

Yes, we can do OEM & ODM as your requirements for you

4.What's your MOQ?

Sample order is acceptable, but for customized product the MO0 is different based on different modelNeed more details please feel free to contact us online or by mail (info@1stess.com) at any time.

5.How you guarantee your products quality?

Our factory have 1S090001 certification, from incoming materials to production, and then to delivery, we have a verycomplete quality control management system to guarantee the quality of every step.

6.What's the lead time for mass production?

It depends on the stock situation, if have stock it wil be 3-5working days, if out of stock it wil be around 20-45daysaccording to different quantity and models.

7.What kind of certificates do you have for your product?

Our products have the certificates of CE, MSDS, IEC, UN38.3, etc.
