IP55 Electric Vehicle Charging Station 380V / 480V With LCD Screen

Product Details

Place of Origin: China

Brand Name: 1stess

Certification: CE, TUV Mark

Model Number: 540K2-200-200

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: negotiable

Packaging Details: container

Delivery Time: 45-60 days

Payment Terms: L/C, T/T

Supply Ability: 10 containers per month

Get Best Price
Contact Now
Specifications
Highlight:

IP55 Electric Vehicle Charging Station

,

Electric Vehicle Charging Station 380V

Type:
Electric Vehicle Charging Station
Input Voltage:
AC 380V/480V
Model:
Ev Charging Station
Display:
LCD Screen
Certifications:
CE, TUV Mark
IP Protection:
IP55
Output DC Voltage:
150V-1000V
Charging Standard:
CHAdeMO, CCS1/2
Type:
Electric Vehicle Charging Station
Input Voltage:
AC 380V/480V
Model:
Ev Charging Station
Display:
LCD Screen
Certifications:
CE, TUV Mark
IP Protection:
IP55
Output DC Voltage:
150V-1000V
Charging Standard:
CHAdeMO, CCS1/2
Description

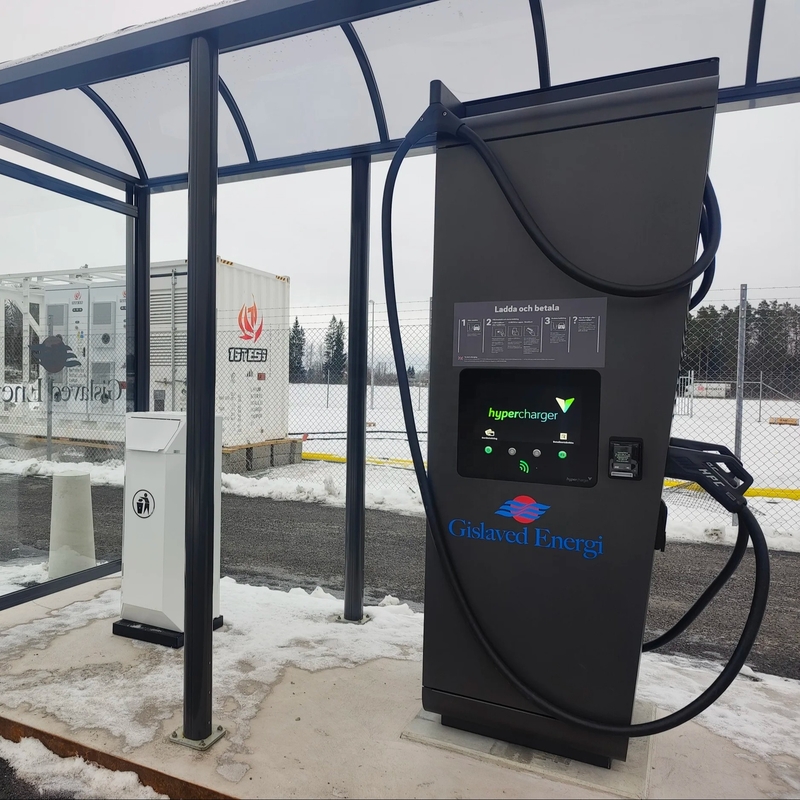

IP55 Electric Vehicle Charging Station 380V / 480V With LCD Screen

IP55 Certified Electric Vehicle Charging Station with LCD Screen and 380V/480V Input Voltage

Product Description:

The BESS Ev Charging Station is a Type 2 Electric Vehicle Charging Station that has an IP55 rating for protection against dust and water. It is a high-quality product that is designed to be durable and reliable, making it an ideal choice for those who want to ensure that their electric car battery charger will last for years to come.

This Electric Car Battery Charger is CE and TUV certified, which means that it has been tested and proven to meet the highest standards of safety and quality. This certification ensures that you can use this Ev Charging Station with confidence, knowing that it has been rigorously tested and meets all applicable safety standards.

The input voltage for the BESS Ev Charging Station is AC 380V/480V, which means that it is capable of providing fast and efficient charging for electric vehicles. This input voltage also means that the charging station is compatible with a wide range of electric vehicles, making it a versatile and practical choice for those who own multiple EVs.

The BESS Ev Charging Station is a reliable and efficient Electric Car Battery Charger that is designed to provide fast and safe charging for electric vehicles. It is a high-quality product that is built to last, and it is backed by a comprehensive warranty that covers any defects or malfunctions that may occur.

If you are looking for an efficient and reliable Electric Car Battery Charger for your electric vehicle, the BESS Ev Charging Station is the perfect choice. With its IP55 rating, CE and TUV certifications, and versatile input voltage, this Ev Charging Station is the ideal solution for anyone who wants to charge their electric vehicle quickly, safely, and efficiently.



Features:

  1. Total electric insolation between the grid, battery, EV and new energy input
  2. Full compatible between different system configuration
  3. Flexible change the system configuration, capacity and power direction
  4. Differentiation battery group configuration and access
  5. Unify EMS stragety
  6. HPC 500A charging support

Technical Parameters:

CHARGING DISPENSE EXP200-FDC EXP300-FDC EXP500-LDC
DC output Output connector 2 connectors with DC-1 and DC-2
Output DC voltage range 150V-1000V
Max DC output current 200A +200A 300A +300A 200A +500A/300A+500A
Ring net function support Power can do 6 steps transfer in each connectors between three dispensors
HMI Tempered glass protective r capacitive Touch Screen LCD, two RGB panel LED , E-STOP, RFID
Metering 2 DC energy meters , GB/T 50063-2008 and DL/T 5137-2008 standard, optional VDE and PTB certification type
Monitor OCPP 1.6J, support firmware update to 2.0, smart charge and power management support, LAN and LTE wireless modem support
Mechanical Dimensions: W*H* D mm 500*1750*260/155kg/1P55/1K10 500*1750*260/165kg/1P55/1K10 500*1750*350/190kg/1P54/1K10
Charging connector capacity GBT: 250A (optional 500A) CCS1/2: 200A (optional 250A, 300A or 500A) CHAdeMO: 125A

Applications:

The BESS Ev Charging Station is perfect for various application occasions and scenarios, such as:

  • Residential Areas: The BESS Ev Charging Station is an excellent choice for homeowners who own electric cars. The station's IP55 protection ensures that it is waterproof and dustproof, making it ideal for outdoor installation. The LCD screen also displays the charging status, making it easy for homeowners to monitor the charging process.
  • Commercial Buildings: Businesses that want to offer EV charging facilities to their employees and customers can benefit from the BESS Ev Charging Station. Its compact design and advanced features make it easy to install and use. The LCD screen can also display custom messages, allowing businesses to promote their brand and services.
  • Parking Lots: Public and private parking lots can also benefit from the BESS Ev Charging Station. The station's IP55 protection ensures that it can withstand harsh weather conditions, and its robust design makes it resistant to vandalism and theft. The LCD screen can also display important information, such as the charging rate and availability of charging ports.
  • Highways and Service Stations: The BESS Ev Charging Station is also ideal for highways and service stations that want to provide EV charging facilities to their customers. Its fast charging speed and advanced features make it a convenient choice for travelers who want to recharge their electric cars quickly.

In conclusion, the BESS Ev Charging Station by 1stess is a reliable and efficient electric car battery charger that is perfect for various application occasions and scenarios. Its advanced features and certifications like CE and TUV Mark, along with its IP55 protection and LCD screen display, make it a top choice for businesses, organizations, and individuals who prioritize sustainability and innovation.
